1107-im

SEW-Taiwan

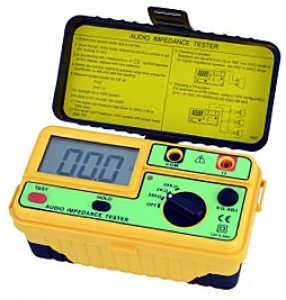

Sew 1107 IM

Category: Audio Impedance Testers
FEATURES
● Large LCD : 68 × 34mm(2.677" × 1.338").
● True measurement of speaker systems actural impedance at 1kHz.
● Three test ranges allow testing of home theater and commercial
   sound systems.
● Measures transformer impedances.
● Battery operation.
● Low battery indication.
● Data hold function.
● 0Ω adjustment.

  SPECIFICATIONS

Measuring ranges 0-200Ω / 0-2kΩ / 0-20kΩ
Test frequency 1kHz
Accuracy 200Ω/2kΩ :
±2%rdg±2dgt
20kΩ : ±3%rdg±2dgt
Low battery
indication		 “  “ Symbol appears on the display
Data hold indication “   “ Symbol appears on the display
Dimensions 175(L) × 85(W) × 75(D)mm
Weight
(battery included)		 Approx. 600g
Power source 1.5V (AA) × 8
Safety standard EN 61010-1 CAT III 200V
EN 61326-1
